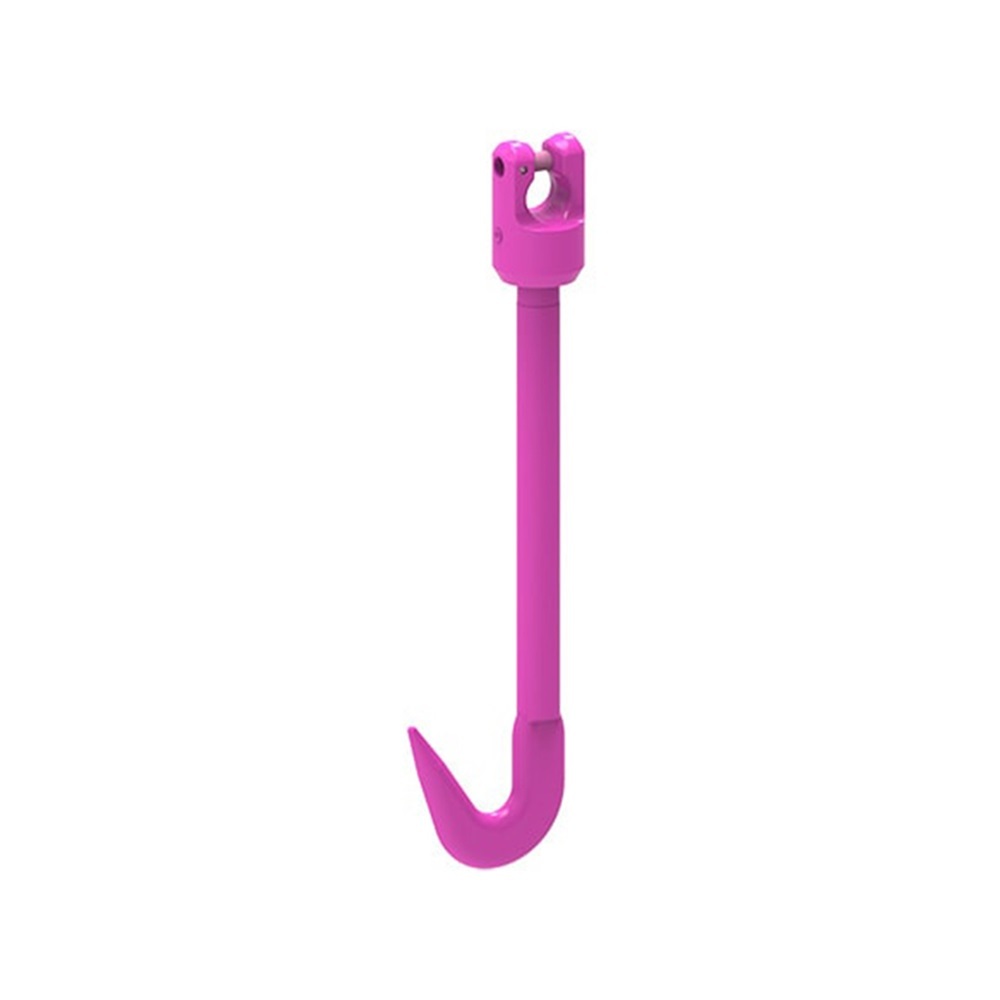

RUD 10mm VIP Pinlock Bale Hook - VBMHWA 10 - Pink

With a revolving swivel connection VIP chain. The flattened back of the hook simplifies the horizontal insertion of the hook into the bales. Only bundled bales should be transported and avoid hooking into bundled packages. Inappropriate for overhead lifting! When using Bale hooks, special attention must be paid and a risk assessment must be carried out before using. Connecting bolt and tensioning sleeve are pre- assembled.


Features:

  • Designed to lift and transport bundled bales of steel mesh
  • 4t WLL when used with 10mm VIP lifting components
  • Swivelling clevis chain connection (10mm)
  • Suitable for use with 10 mm vip lifting component.

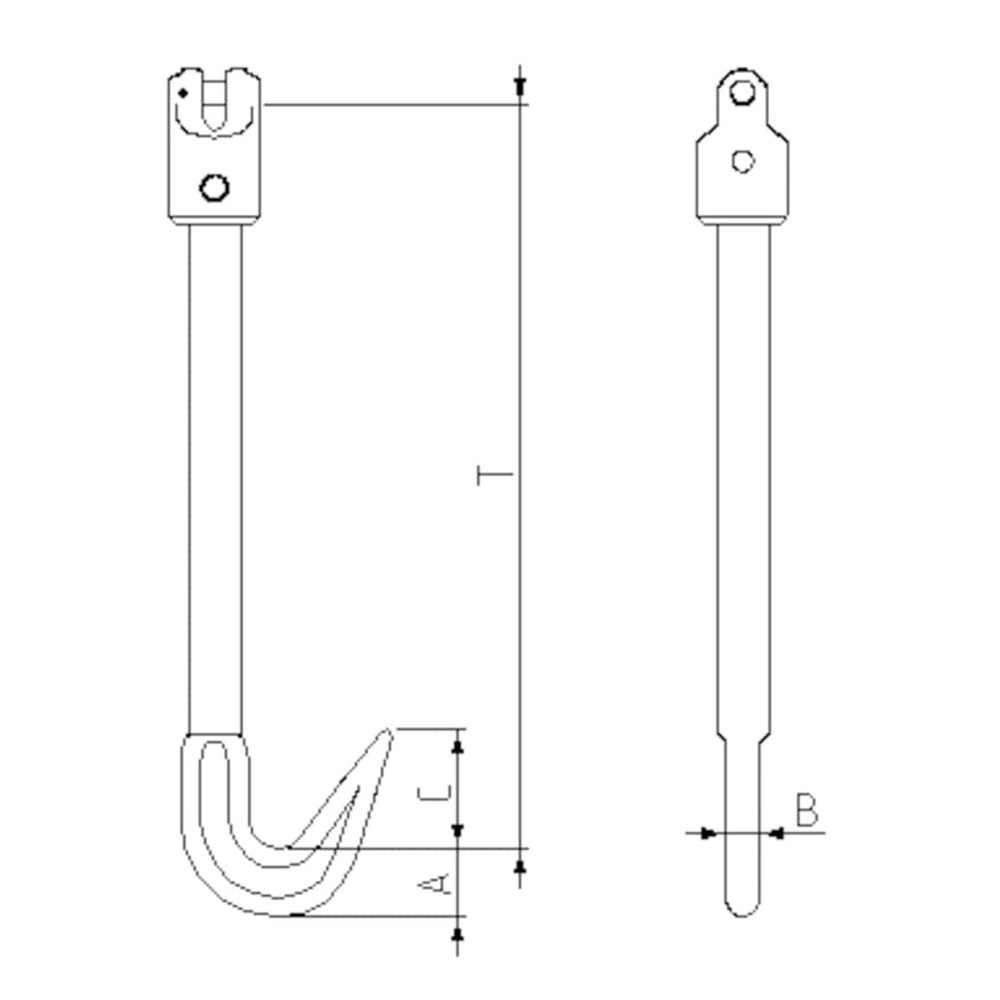

Specifications:

  • Colour: Pink
  • Nominal WLL: 2500kgs
  • A: 35mm
  • B: 18mm
  • T: 389mm
  • C: 61mm

(D8100260)

SKU D8100260
Barcode # 9354506016272
Brand RUD
