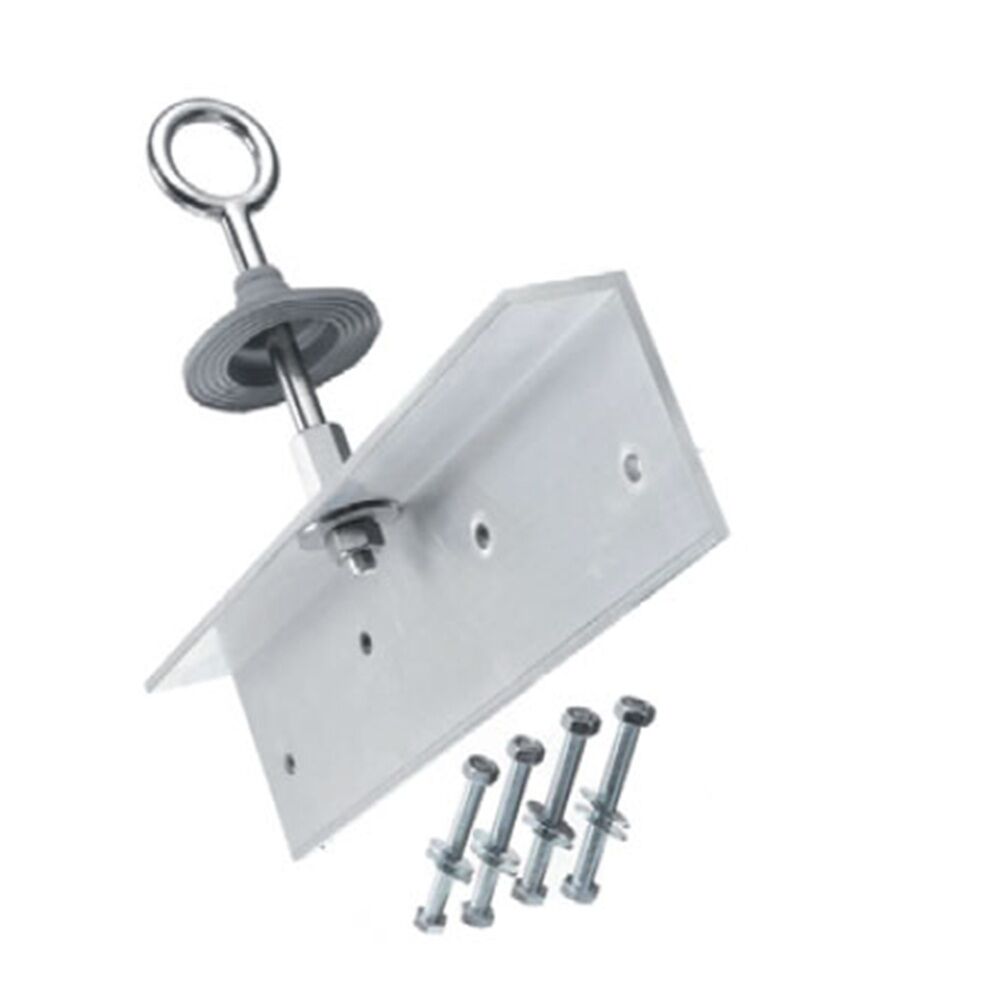

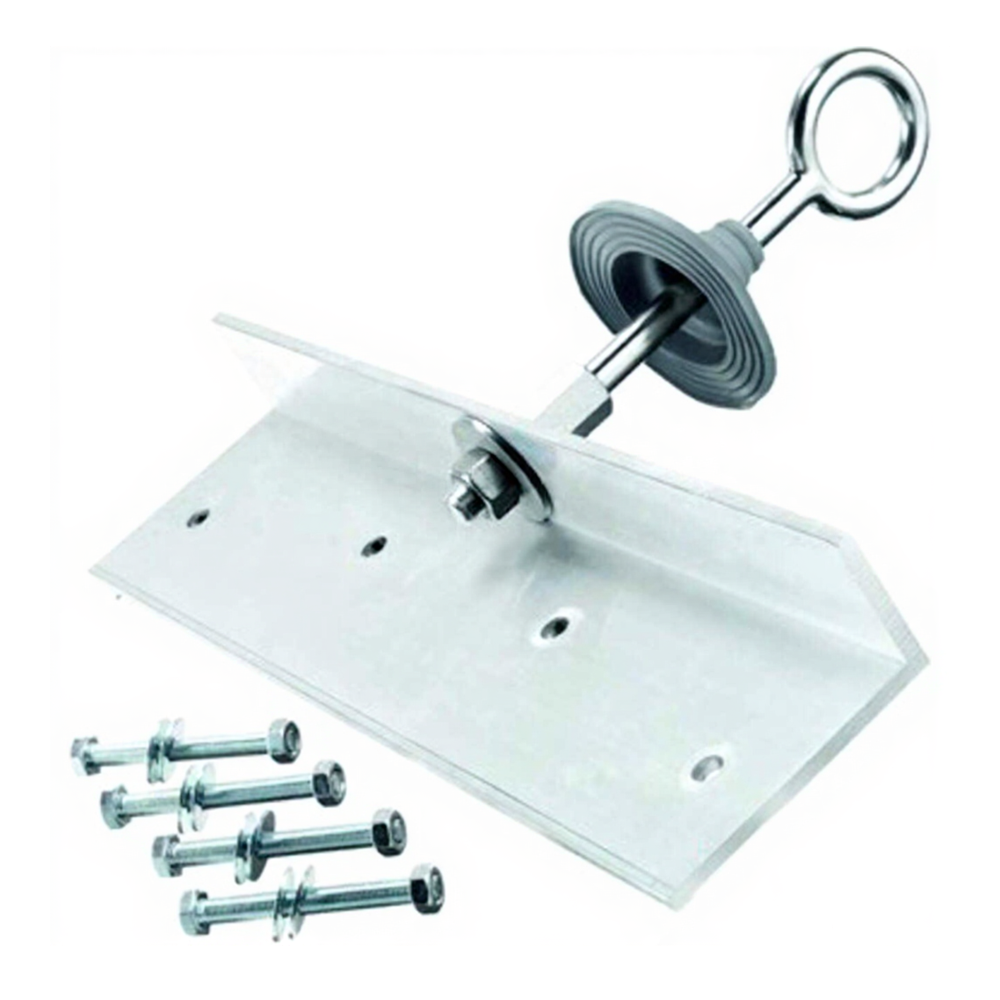

• System Compatibility: Designed to be fixed onto steel or timber roof structures, as well as steel roof sheeting
• Special Features: Provides shock absorption by bending when a sudden load is applied, as in the case of a fall
• Materials Used: Made from stainless steel, one piece drop forged
• Finish: Polished smooth finished
• Fall Arrest Capacity: 22 kN
• Ultimate Tensile Load: 40 kN
• Dimensions: Length: 240mm, Eye Diameter: 60mm
• Fixing Details: Timber Truss: Min 90mm x 45mm grade MPG10/using alum. plate, Steel Purlin: min gauge 150 x 1.5mm, Roof Sheet: min gauge 0.42/using top mount plate
• Complies With Australian Standards: AS/NZS 1891.4:2000
• Designed To Be Used As An Anchor Point For Personal Fall Arrest Systems On Roofs
• Featuring Quick And Easy Installation
• An Attachment Point For Lanyards And Harnesses
• Ideal For Heights Of Approximately 2m
• Suitable For: Maintenance Work, Repair, And New Built Structures.
• Choose From Tile Roof Or Iron Roof Anchor
• Main Benefits:
  • Enhanced Safety: Provides a secure attachment point for persons accessing roof areas via rope line, energy absorber and full body harness
  • Shock Absorption: Designed to provide shock absorption by bending when a sudden load is applied, as in the case of a fall
  • Easy Installation: Can be installed on light structures, providing a safe anchorage point without additional strengthening of the structure
  • Durability: Made from high-quality stainless steel, one piece drop forged

Specifications:
