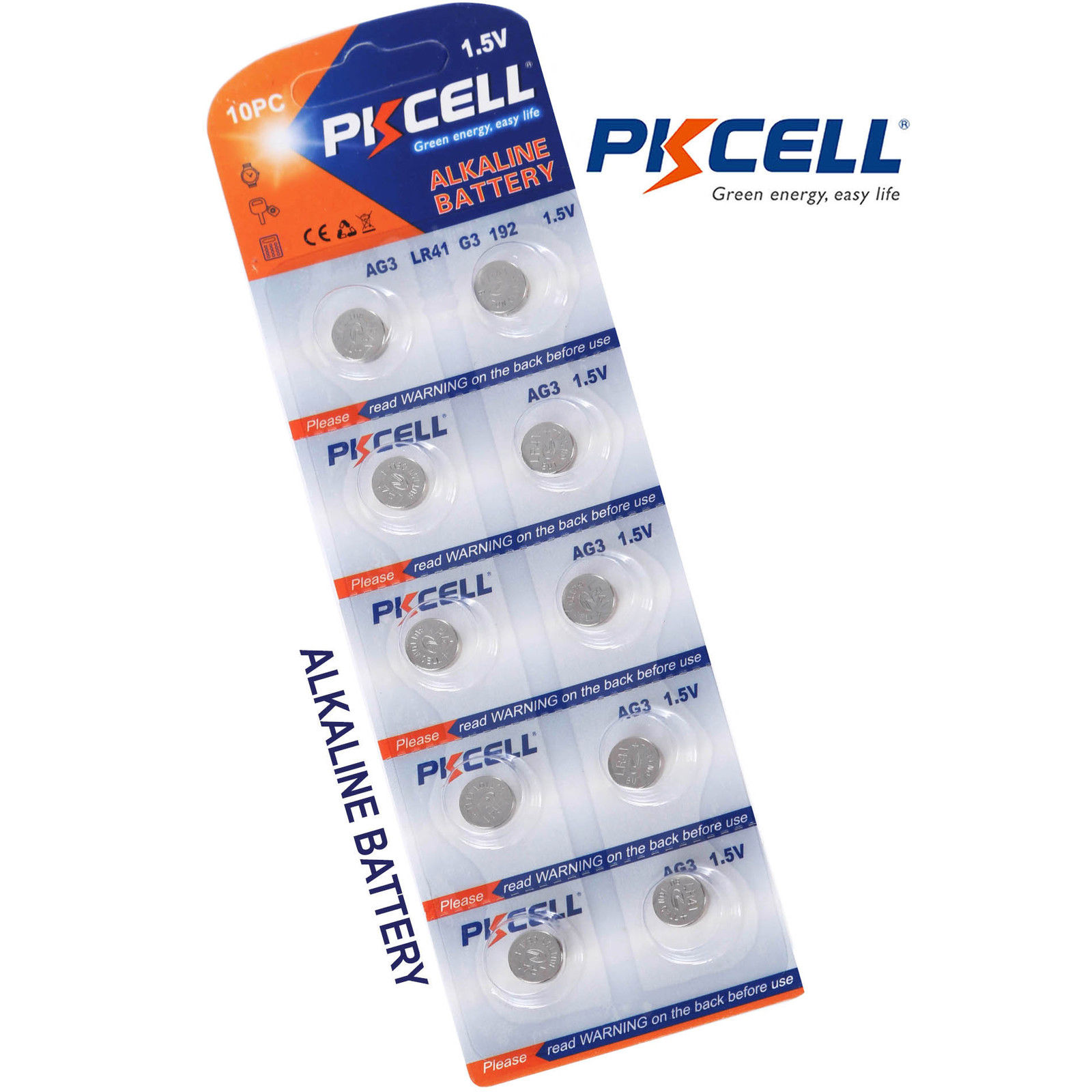

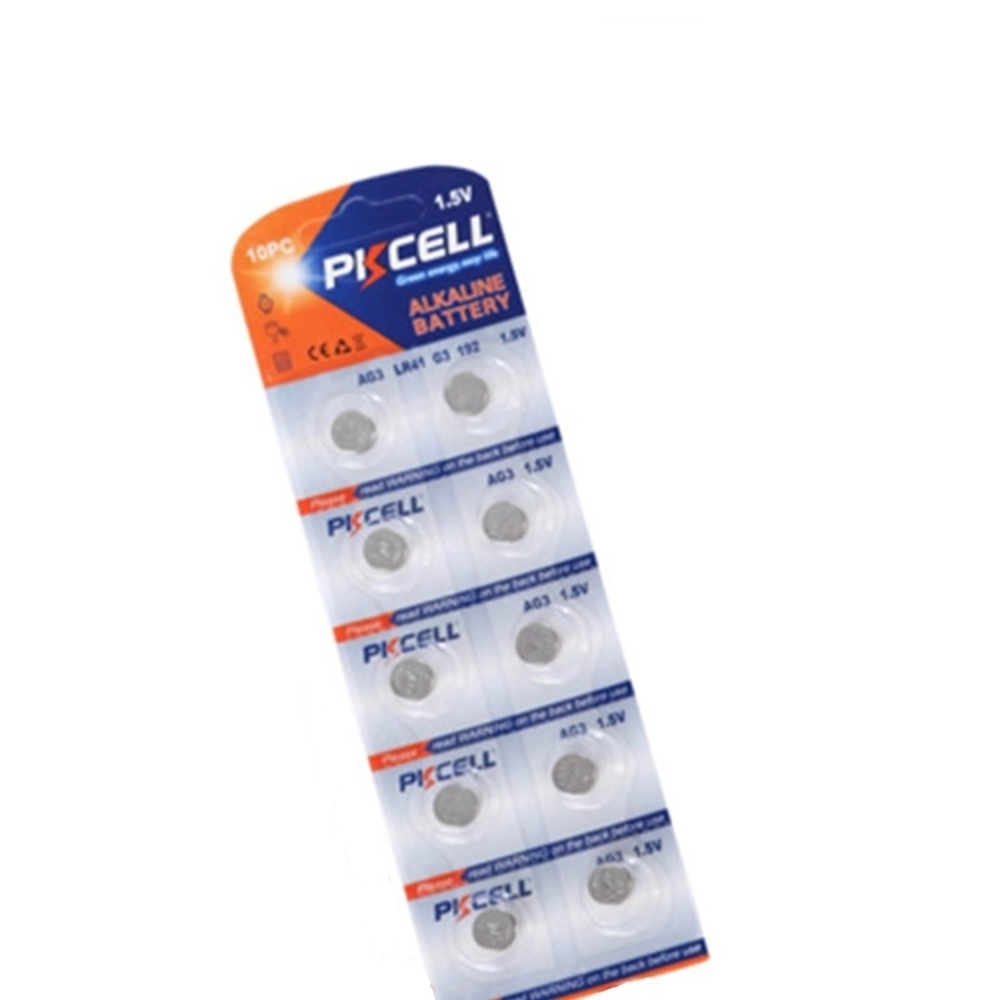

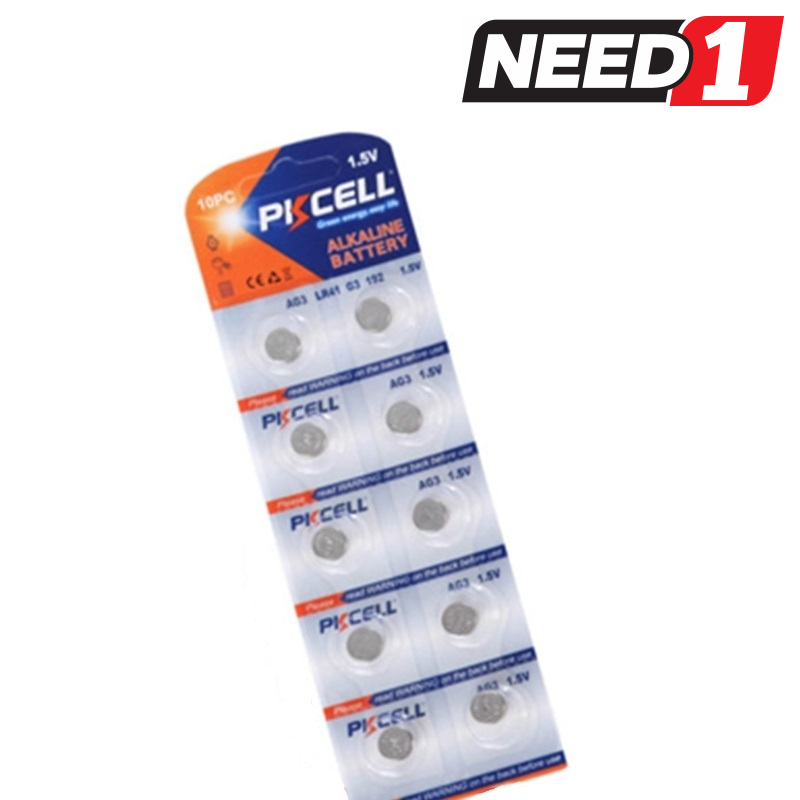

PKCELL Button Battery LR41

Features

Item No.		Normal Voltge (V)	Capacity (mAH)	Size Dia*H. (mm)	Weight (g)	Chemistry
AG0	LR63/179/521	1.5	10	5.75 x 2.1	0.28	Alkaline
AG1	LR60/164/621	1.5	13	6.75 x 2.1	0.28	Alkaline
AG2	LR59/106/726	1.5	28	7.85 x 2.6	0.44	Alkaline
AG3	LR41/192	1.5	35	7.85 x 3.5	0.60	Alkaline
AG4	LR66/177/626	1.5	18	6.75 x 2.5	0.32	Alkaline
AG5	LR48/193/754	1.5	60	7.90 x 5.4	0.90	Alkaline
AG6	LR69/171/920	1.5	32	9.40 x 2.1	0.55	Alkaline
AG7	LR57/195/927	1.5	42	9.40 x 2.5	0.64	Alkaline
AG8	LR55/191/L1120	1.5	45	11.50 x 2.1	0.79	Alkaline
AG9	LR45/194/936A	1.5	45	9.40 x 3.5	0.86	Alkaline
AG10	LR54/189/L1130	1.5	75	11.5 x 3.1	1.18	Alkaline
AG11	LR58/162/721	1.5	20	7.85 x 2.1	0.38	Alkaline
AG12	LR43/186	1.5	100	11.50 x 4.1	1.47	Alkaline
AG13	LR44/A76	1.5	145	11.50 x 5.4	1.96	Alkaline

Item No.	System	Normal Voltage (V)	Capacity (mAH)	Dimension (mm)	Weight (g)	Recomended Continuous Drain (mA)	Recommended Pulse Drain (mA)
CR927	Lithium	3.0	30	9.5 x 2.7	0.6	0.1	5
CR1216	Lithium	3.0	25	12.5 x 1.6	0.7	0.1	5
CR1220	Lithium	3.0	45	12.5 x 2.0	0.9	0.1	5
CR1225	Lithium	3.0	50	12.5 x 2.5	1.0	0.1	5
CR1616	Lithium	3.0	50	16.0 x 1.6	1.2	0.1	5
CR1625	Lithium	3.0	85	16.0 x 2.5	1.6	0.1	10
CR1620	Lithium	3.0	70	16.0 x 2.0	1.3	0.1	10
CR2016	Lithium	3.0	75	20.0 x 1.6	1.8	0.1	10
CR2025	Lithium	3.0	150	20.0 x 2.5	2.4	0.2	15
CR2032	Lithium	3.0	230	20.0 x 3.2	3.0	0.2	15
CR2320	Lithium	3.0	150	23.0 x 2.0	3.0	0.2	18
CR2325	Lithium	3.0	190	23.0 x 2.5	3.5	0.2	18
CR2330	Lithium	3.0	260	23.0 x 3.0	4.0	0.2	18
CR2430	Lithium	3.0	285	24.5 x 3.0	4.5	0.2	18
CR2450	Lithium	3.0	550	24.5 x 5.0	6.2	1.0	25
CR2477	Lithium	3.0	800	24.5 x 7.7	7.0	1.0	25

(AG3-10B)
