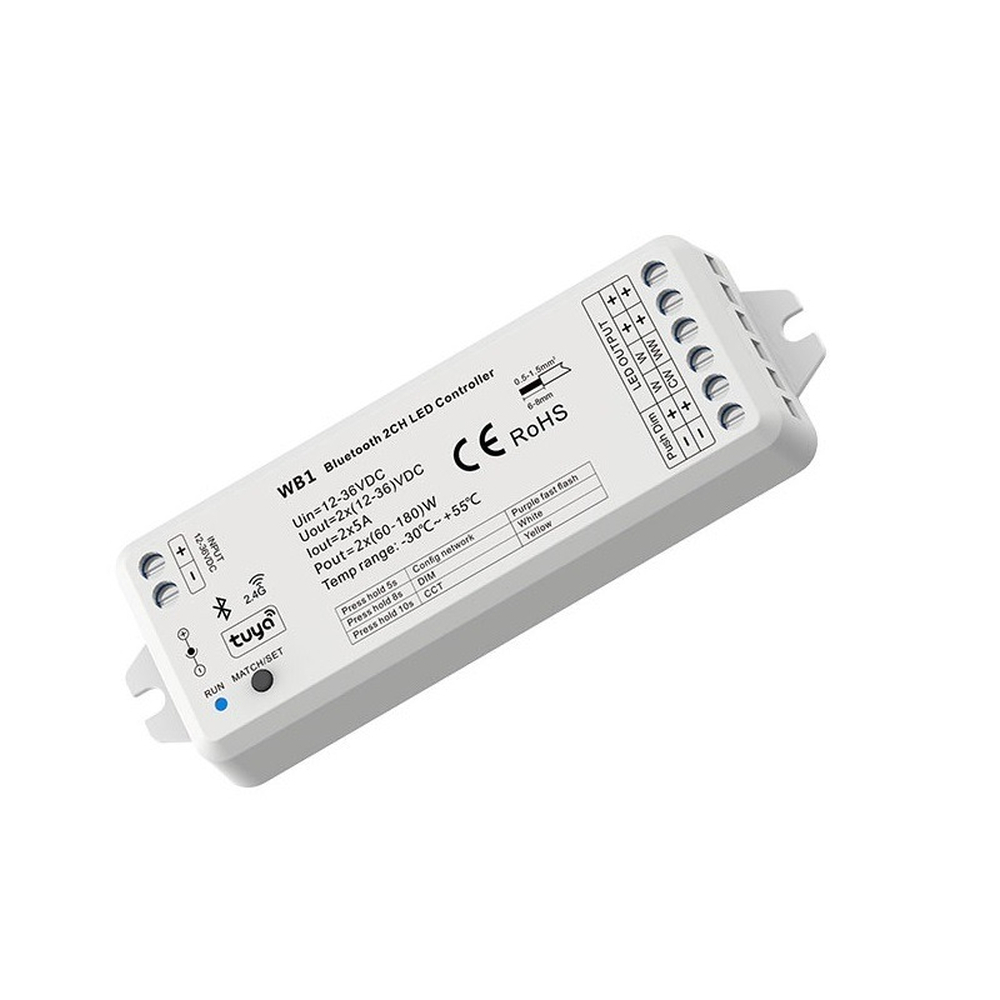

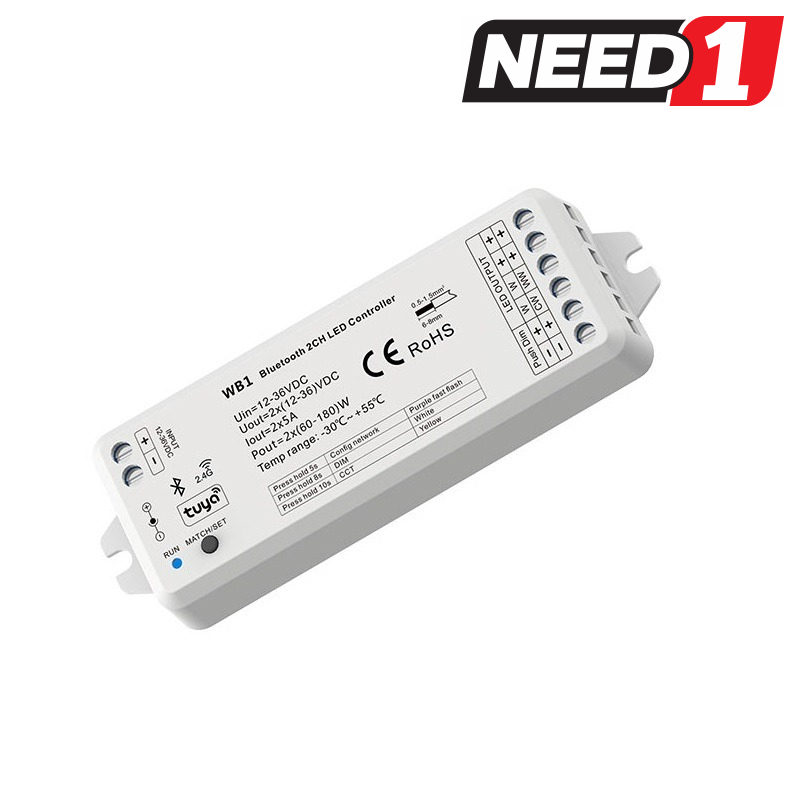

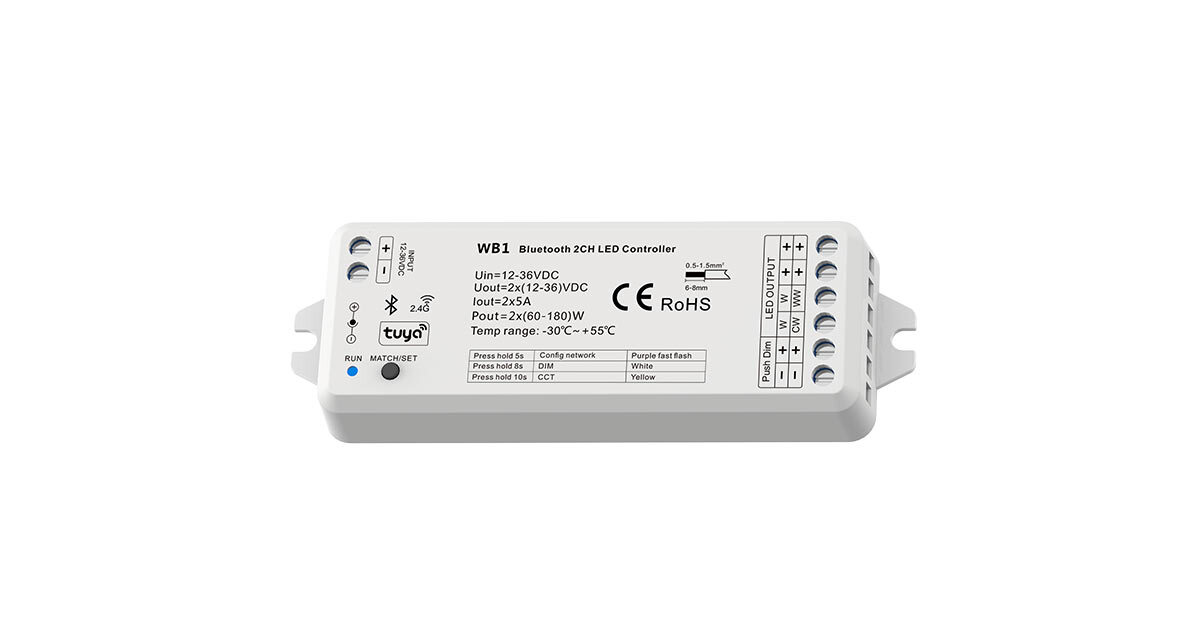

CROWN LIGHTING Bluetooth & RF 2.4GHz CCT 2CH LED Controller - TUYA APP Cloud Control / 2 Channels / Push-Dim / DC Power Socket Input / Wireless Remote Control

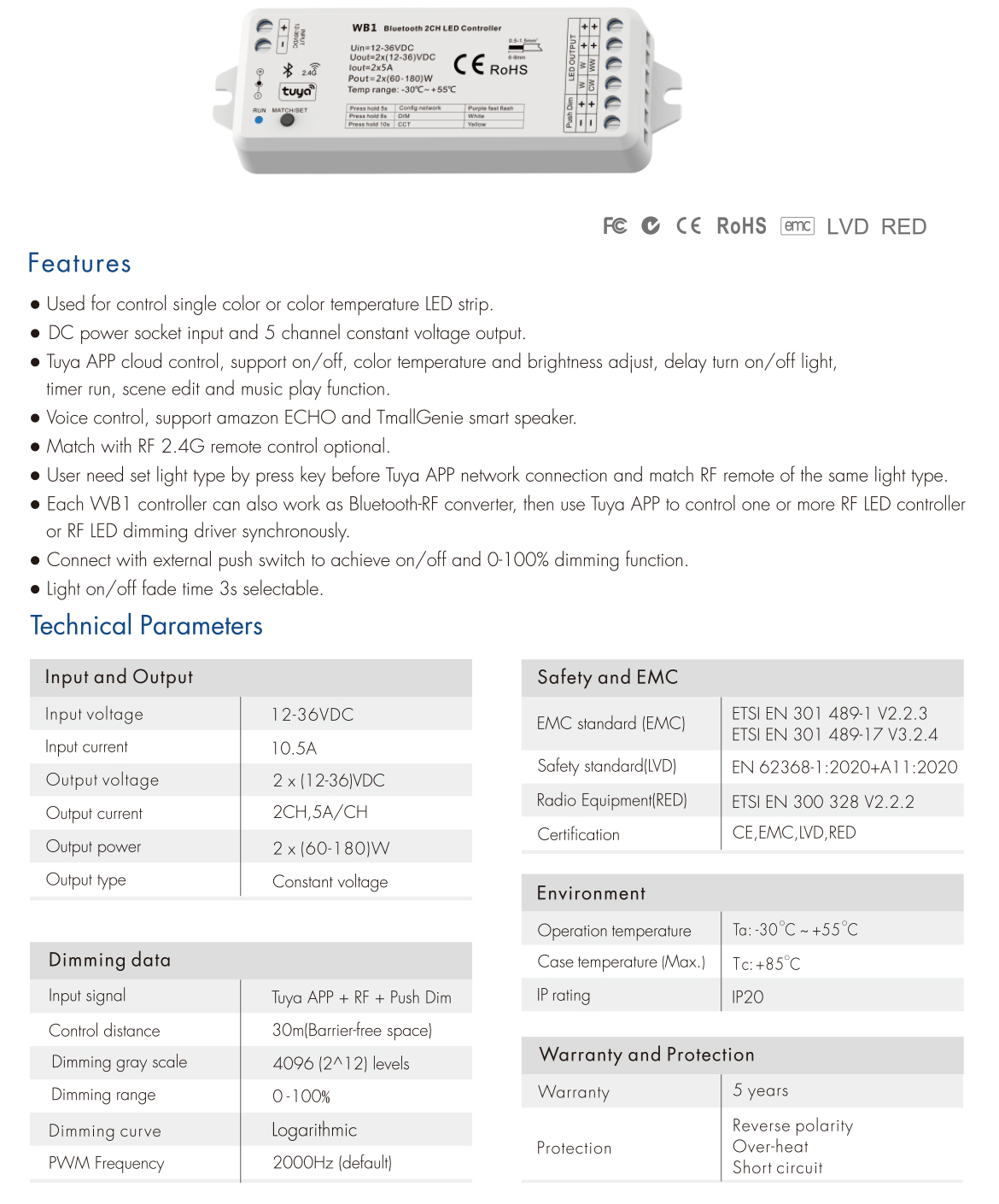

Features

  • Used for control single colour or colour temperature LED strip
  • DC power socket input and 5 channel constant voltage output
  • TUYA APP cloud control, support on / off colour temperature and brightness adjust, delay turn on / off light, timer run, scene edit and music play function.
  • Voice control, support Amazon and TallGenie smart speaker
  • Match with RF 2.4G remote control optional

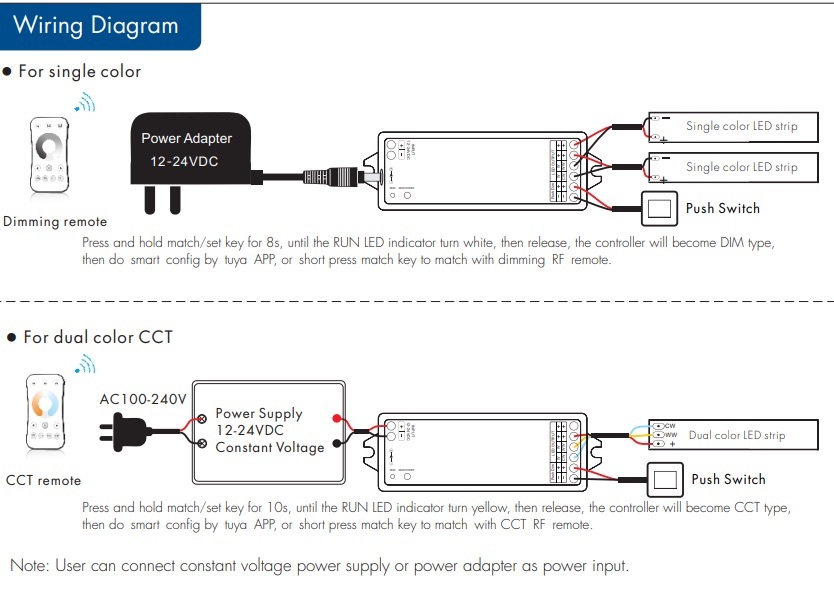

  • User need set light type by press key before Tuya APP network connection and match RF remote of the same light type
  • Each WB1 controller can also work as Bluetooth-RF converter, then use Tuya APP to control one or more RF LED controller or RF LED dimming driver synchronously
  • Connect with external push switch to achieve on / off and 0-100% dimming function
  • Light on / off fade time 3s selectable

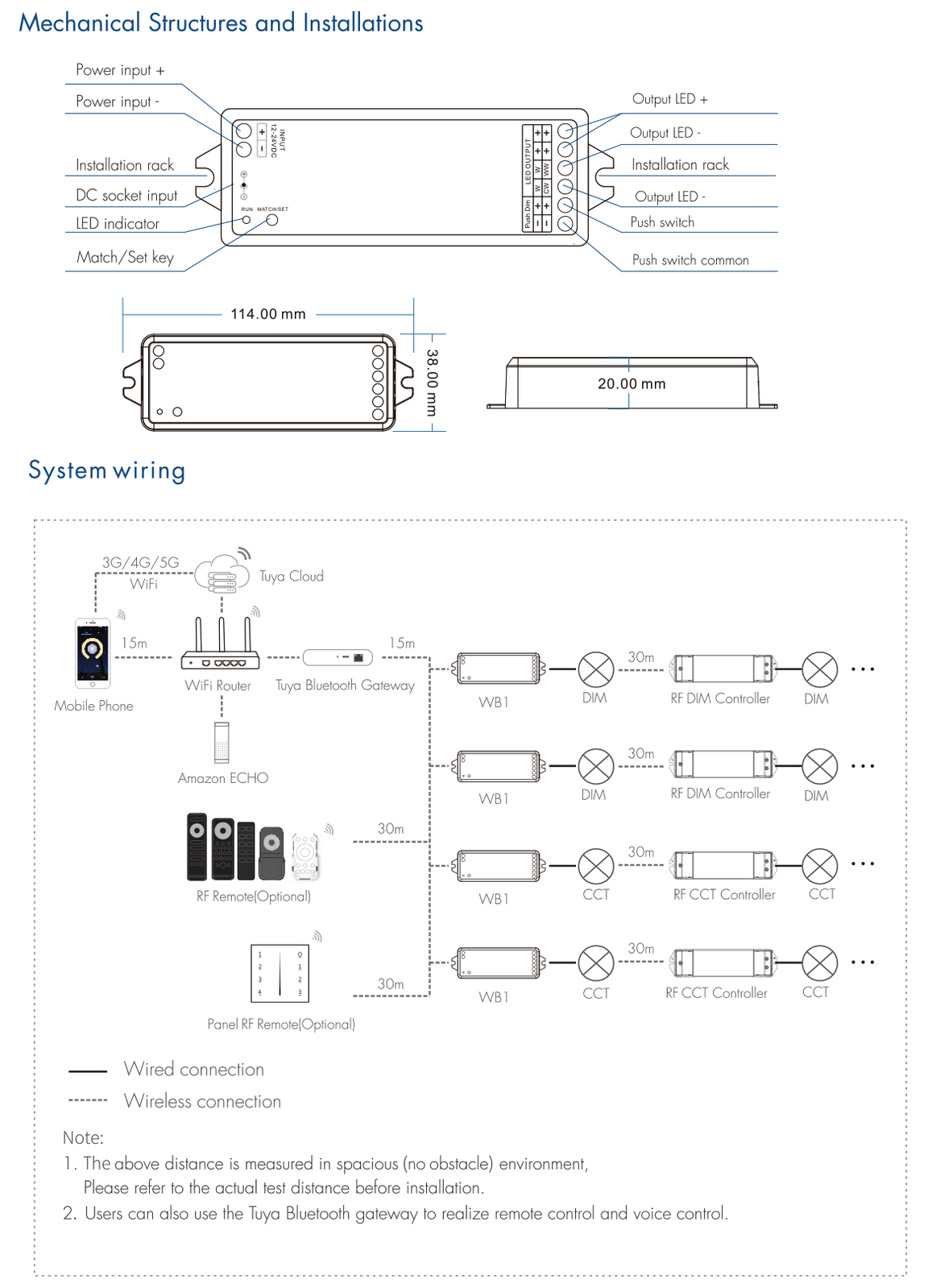

Size (mm)

114*38*20



Light Type

Brightness Colour Temperature

CCT



Technical Parameters



Input and Output

Input Voltage: 12-36VDC

Input Current: 10.5A

Output Voltage: 2 x (12-36)VDC

Output Current: 2CH,5A/CH

Output Power: 2 x (60-180)W

Output Type: Constant Voltage



Dimming Data

Input Signal: Tuya APP + RF + Push Dim

Control Distance: 30m (Barrier-Free Space)

Dimming Gray Scale: 4096 (2^12) Levels

Dimming Range: 0-100%

Dimming Curve: Logarithmic

PWM Frequency: 2000Hz (Default)



Safety & EMC

EMC Standard (EMC): ETSI EN 301 489-1 V2.2.3

ETSI EN 301 489-17 V3.2.4

Safety Standard (LVD): EN 62368-1:2020+A11:2020

Radio Equipment (RED): ETSI EN 300 328 V2.2.2

Certification: CE,EMC,LVD,RED



Environment & Protection

Operative Temperature: Ta:-30°C~+55°C

Case Temperature (Max): Tc:+85°C

IP Rating: IP20

Protection: Reverse Polarity

Over-heat

Short Circuit



To be installed by a Licensed Electrician



(WB1)

SKU WB1
Barcode # 9354506006945
Brand CROWN LIGHTING
