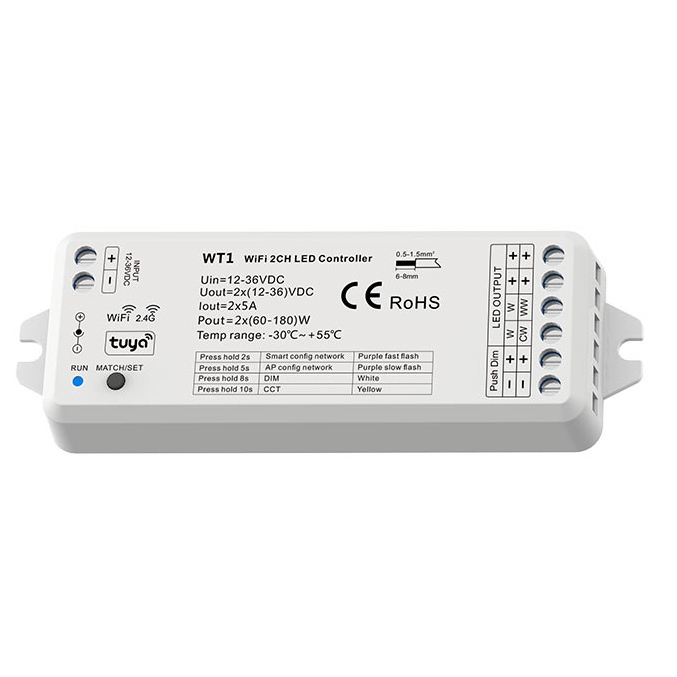

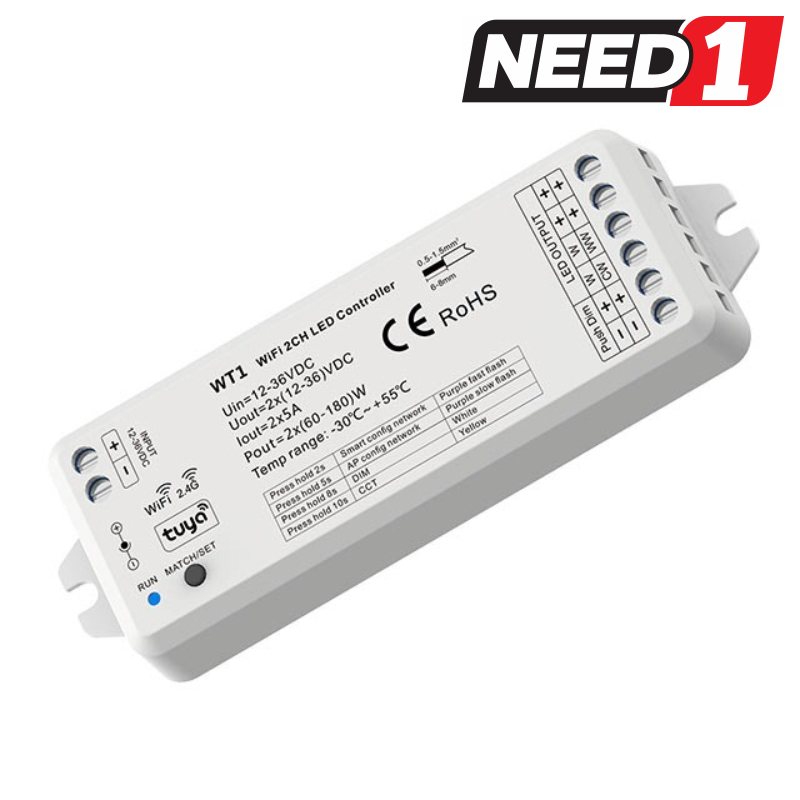

CROWN LIGHTING WIFI & RF 2.4GHz CCT 2CH LED Controller - TUYA APP Cloud Control / Voice Control / 2 Channels / Push-Dim / DC Power Socket Input / Wireless Remote Control

Features

• Used for control single colour or colour temperature LED strip
• DC power socket input and 2 channel constant voltage output
• TUYA APP cloud control, support on / off colour temperature and brightness adjust, delay turn on / off light, timer run, scene edit and music play function.
• Voice control, support Amazon and TallGenie smart speaker
• Match with RF 2.4G remote control optional
• User need set light type by press key before Tuya APP network connection and match RF remote of the same light type
• Each WT1 controller can also work as WIFI-RF converter, then use Tuya APP to control one or more RF LED controller or RF LED dimming driver synchronously
• Connect with external push switch to achieve on / off and 0-100% dimming function
• Light on / off fade time 3s selectable

Size (mm)

114*38*20

Light Type

Brightness Colour Temperature

CCT

Technical Parameters

Input and Output

Input Voltage: 12-36VDC

Input Current: 10.5A

Output Voltage: 2 x (12-36)VDC

Output Current: 2CH,5A/CH

Output Power: 2 x (60-180)W

Output Type: Constant Voltage

Dimming Data

Input Signal: Tuya APP + RF + Push Dim

Control Distance: 30m (Barrier-Free Space)

Dimming Gray Scale: 4096 (2^12) Levels

Dimming Range: 0-100%

Dimming Curve: Logarithmic

PWM Frequency: 2000Hz (Default)

Safety & EMC

EMC Standard (EMC): ETSI EN 301 489-1 V2.2.3

ETSI EN 301 489-17 V3.2.4

Safety Standard (LVD): EN 62368-1:2020+A11:2020

Radio Equipment (RED): ETSI EN 300 328 V2.2.2

Certification: CE,EMC,LVD,RED

Environment & Protection

Operative Temperature: Ta:-30°C~+55°C

Case Temperature (Max): Tc:+85°C

IP Rating: IP20

Protection: Reverse Polarity

Over-heat

Short Circuit

To be Installed by a Licensed Electrician
