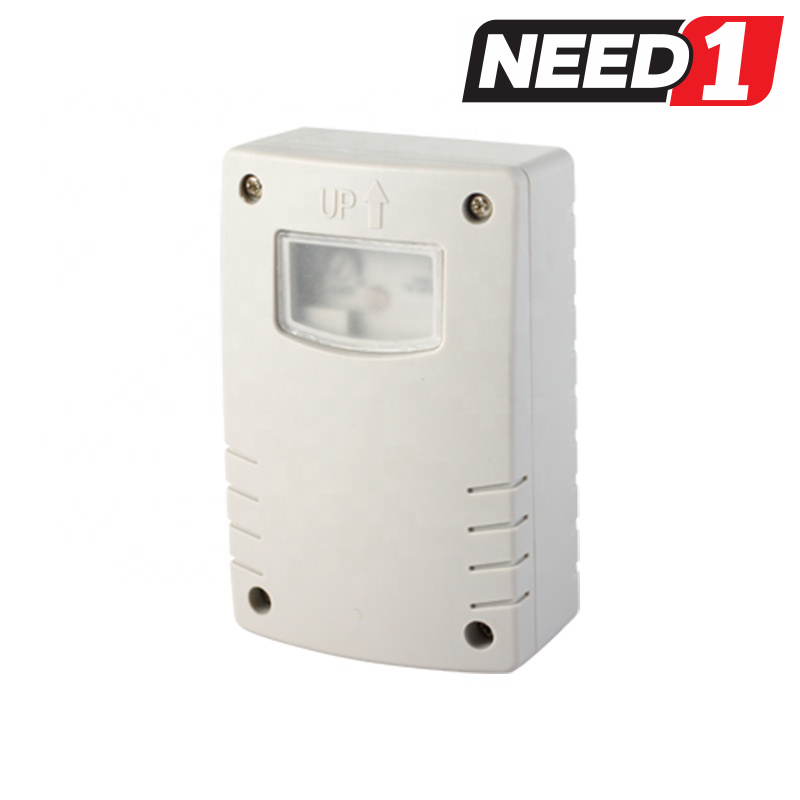

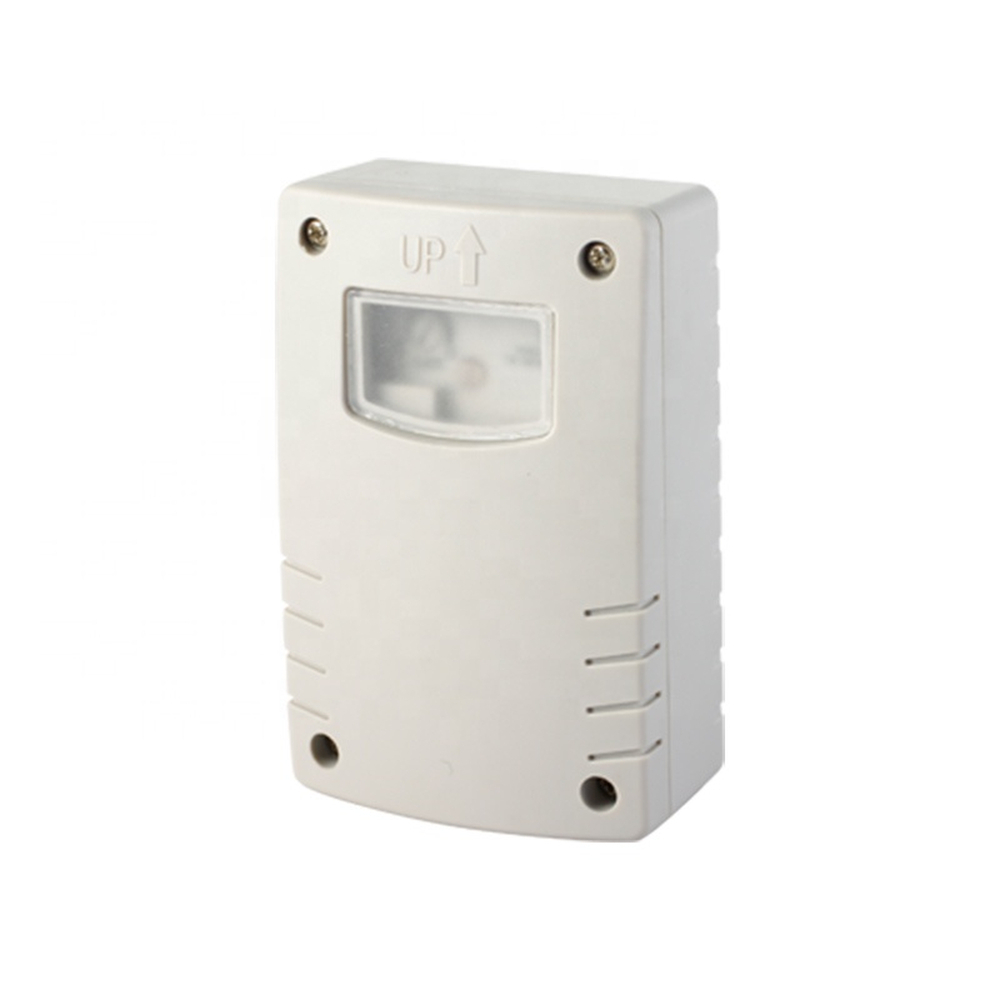

BIG BOSS AU Day Night Control Switch with Timer

This item is an automatic photocell switch for lamps. When the ambient-light darken to the LUX that you set in advance, the light will turn on. The light will turn off at the preset time or ambient-light is more than the setting LUX. It adds the functions of LUX adjustable and TIME setting. It is easy and comfortable to use.


Features:

  • LUX Setting: Turn Lux knob anti-clockwise to “3”position, the photocell will only work in the dark (less than 3LUX). If turn clockwise to “500” position, it will work when the ambient light is less than 500LUX.
  • TIME setting: you can set the regular working hours of the photocell as needed



Specifications:

  • Power Source: 110-130V/AC 220-240V/AC
  • Rated Current: 10A
  • Working Temperature: -20~+40℃
  • Built-in Timer: 1, 2, 3, 4, 5, 6, 7, 8, 9 Hours
  • Power Frequency: 50/60Hz
  • Ambient Light: <3-500 LUX (adjustable)
  • Working Humidity: < 93% RH



Installation:

  • Switch off the power
  • Loosen the four screws on the cover and take down the cover.

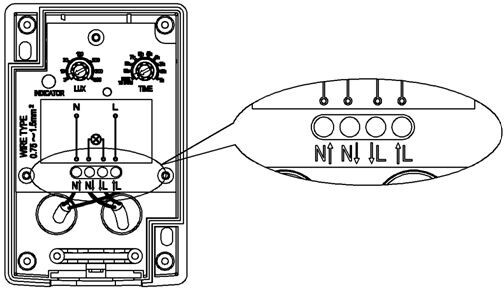

  • Connect the wire with the product as per the connection-wire diagram.

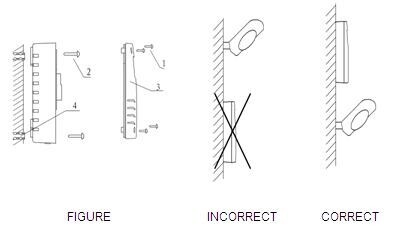

  • According to the correct installation place, install the product with the enclosed inflated screws.
  • Install back the cover. Switch on the power, and then test it.



(ST300)

SKU ST300
Barcode # 9354506003593
Brand Big Boss AU
