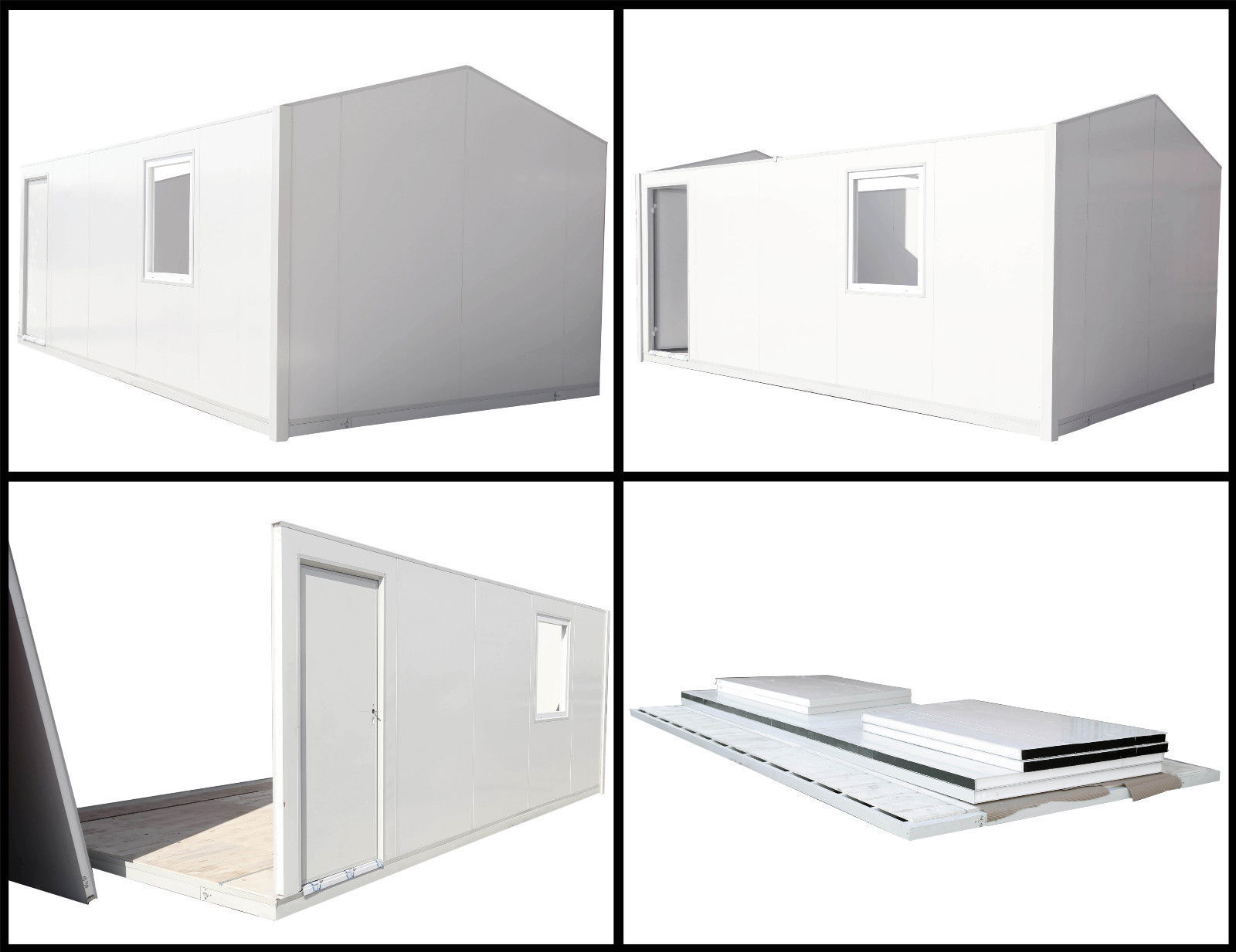

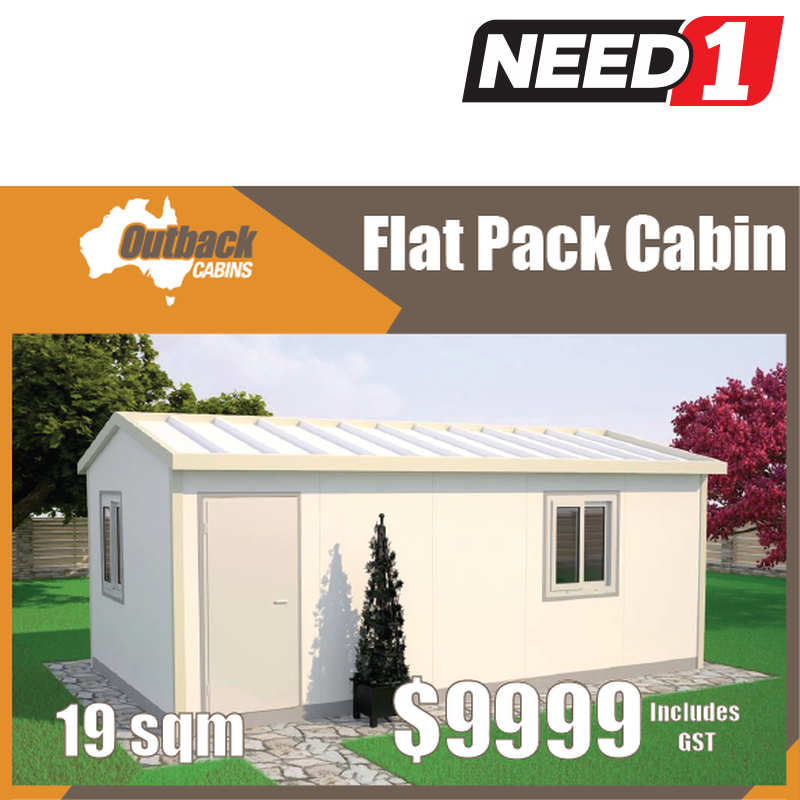

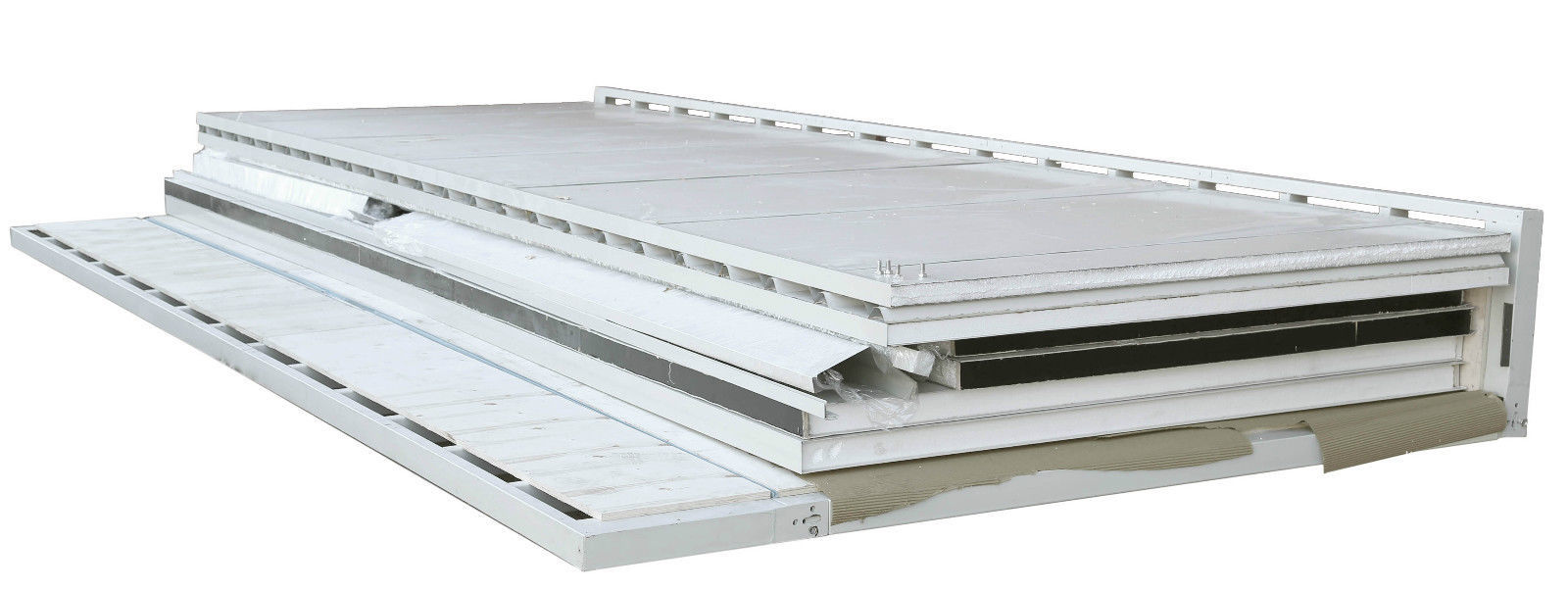

Flat-Pack Shipping Specs
Length 5850 mm
Width 2250 mm
Height 625 mm
Shipping Weight 1200kg
Assembled Specifications
Total Area 19sqm
Length 5850 mm (19')
Width 3250 mm (11’)
Wall Height 2680 mm
Ceiling Height 2380 mm
Unit Weight 1200kg
Material Specs
Insulation Energy Efficient EPS Foam
Roofing Sheet 1.6mm Corrugated Steel
Ceiling Panels Insulated 75mm EPS sandwich panels
Floor Frame Steel
Floor Surface Poly Wood
Wall Exterior Cladding 0.5mm Thick Powder Coated Steel Sheet
Wall Insulation 75mm EPS Foam
Wall Interior Cladding 0.5mm Thick Powder Coated Steel Sheet

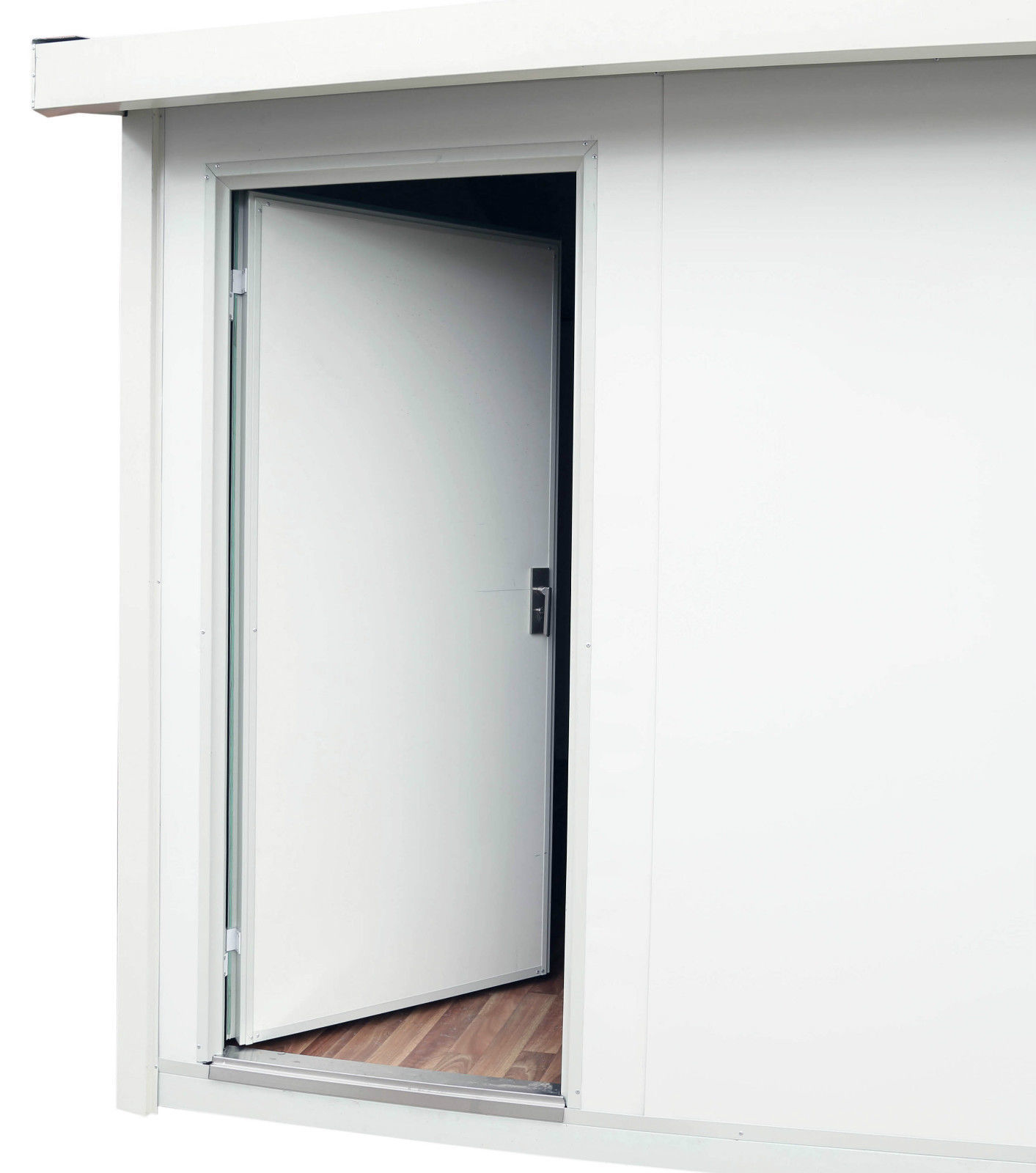

Door Frame Steel
Door Insulation 40mm EPS Foam
Door Finish 0.5mm Powder Coated Steel Sheet
Safety Specs
Wind Rating N1 (Non-Cyclonic) for 100 km/h wind gust
Insulation Foam Low Combustibility
Low Smoke Emissions

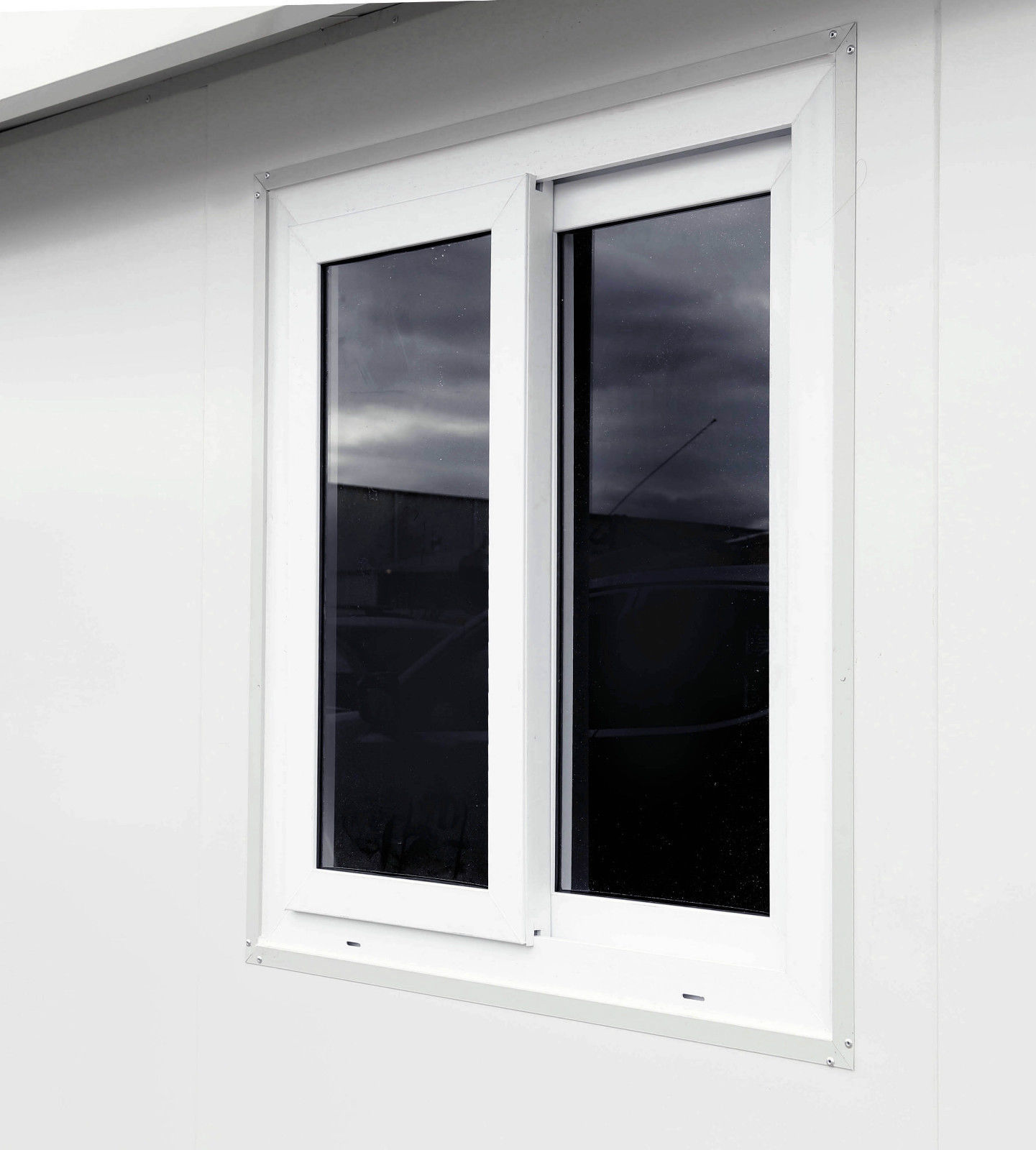

Glass Australian Standard Rated

(FH325580)

SKU FH325580
Brand Outback Cabins
Unit Of Measure ea
