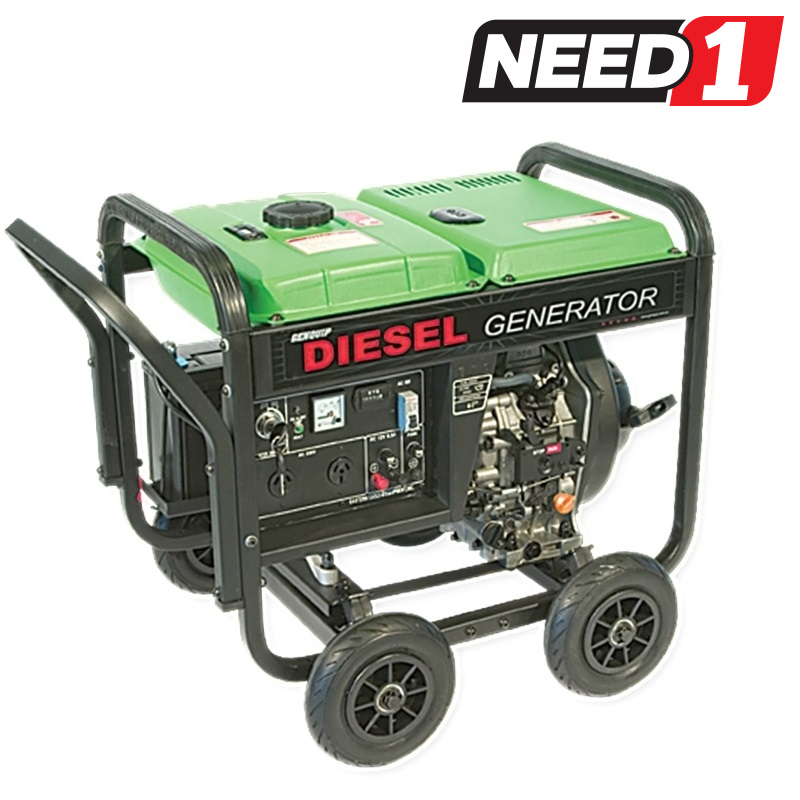

GENQUIP Diesel Generator - 5500W

Diesel Generator 5500W Electric Start

A 10hp engine powers the GENQUIP 5500 watt Diesel Generator.

Electric start is standard as well as dual power outlets and low oil warning system.

A fuel tank capacity of 12 litres gives a running time of 14 hours (at 50% load capacity).

The unit is housed in a sturdy frame and comes complete with wheels.

Model Type	DG6LE
Generator type	Single phase A.C. generator
Rated power (kW)	5
Frequency (Hz)	50
Voltage (A.C) (V)	230
Voltage (D.C) (V)	12
Current (D.C) (A)	8.3
Speed (rpm)	3000
Power factor (COSø)	1
Phase type	Single phase
Number of poles	2
Excitation	Self-excitation voltage
Insulation	B
Engine model	186E
Engine type	Single-cylinder, vertical, 4-stroke, air cooled, direct injection
Output Continous (kW)	6.6 (8.85 HP)
Output Maximum (kW)	7.36 (10HP)
Bore x Stroke (mm)	86 x 70
Displacement (cc)	406 cc
Cooling system	Forced air cooling by flywheel fan
Lubricating system	Pressure splash, duplex type lubrication
Oil capacity	1.65 L
Starting system	Recoil manual start / Electric start
Fuel tank capacity	12 L
Continuous operating hours	14 hours
Dry weight	119 kg
Dimensions – L x W x H	740 x 500 x 590 (mm)
