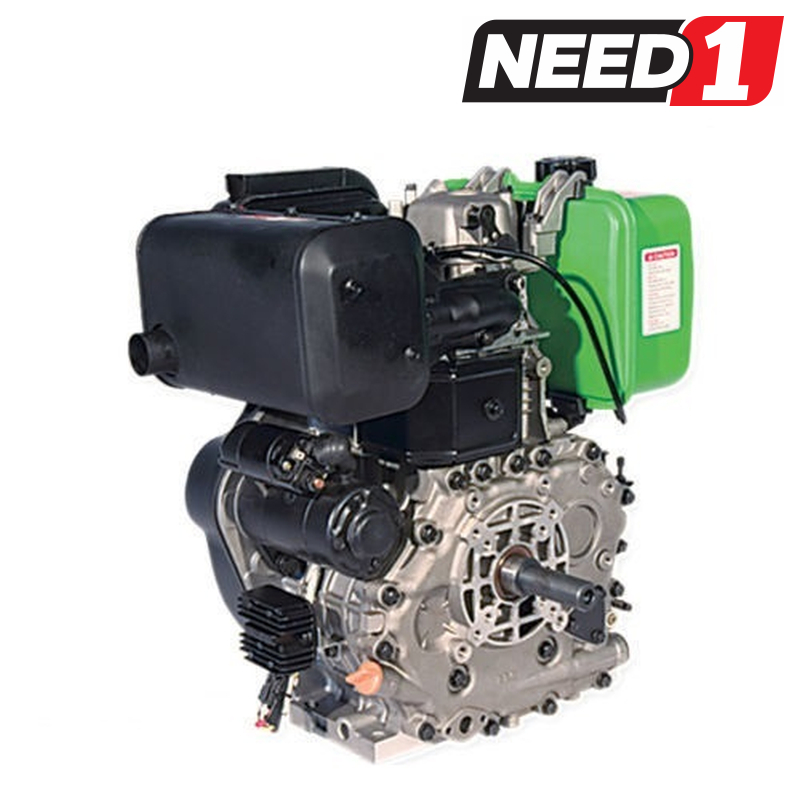

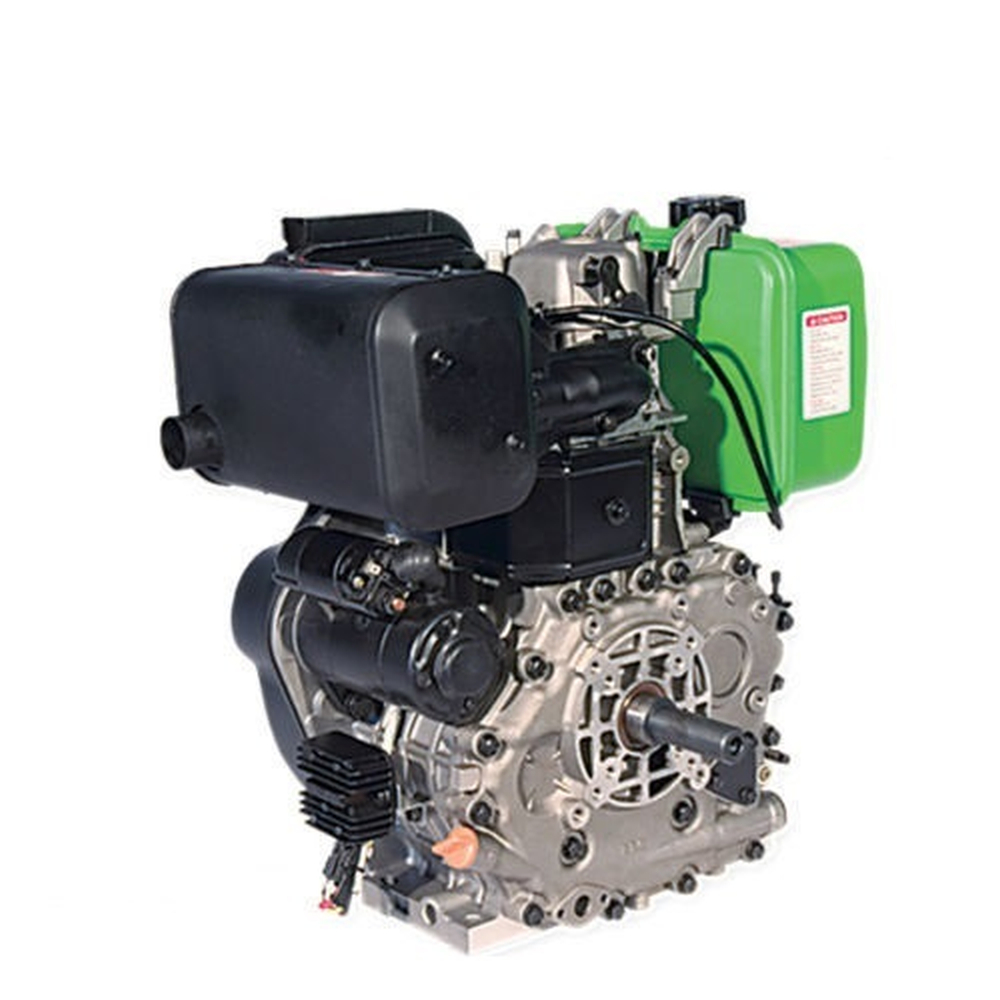

GENQUIP Diesel Stationary Motor 10hp Electric Start

The GENQUIP Direct Injection 10 HP Diesel Engine features electric start as standard.

There is also a pull-start as backup with a decompression lever for ease of starting.

Features also include a 25.4mm standard key way shaft and 5.5 litre tank capacity.

Model Type186E
TypeSingle-cylinder, vertical, 4-stroke, air-cooled, direct-injection
Bore x Stroke (mm)86 x 70
Displacement (cc)406
Speed (r/min)3600
Continuous (HP)8.85
Maximum (HP)10
Continous (kw)6.6
Maximum (kw)7.34
Mean speed of piston (m/s)8.4
Mean effective pressure (kPa)543.5
Specific fuel consumption (Litres per hour)1
Fuel tank capacity (L)5.5
Lube Oil Capacity
Full (L)1.65
Rotary direction of crankshaftClockwise from flywheel end
Cooling TypeForced air cooling by flywheel fan
Lubrication typePressure,splash
Starting systemRecoil manual start / electric start
Dry weight (kg)53
Dimensions ( L x W x H )417 x 441 x 494 mm

Please Note: Diesel Motor prices do not include batteries. Please refer to the General Items section for battery prices and specifications.


Unit Of Measure ea
