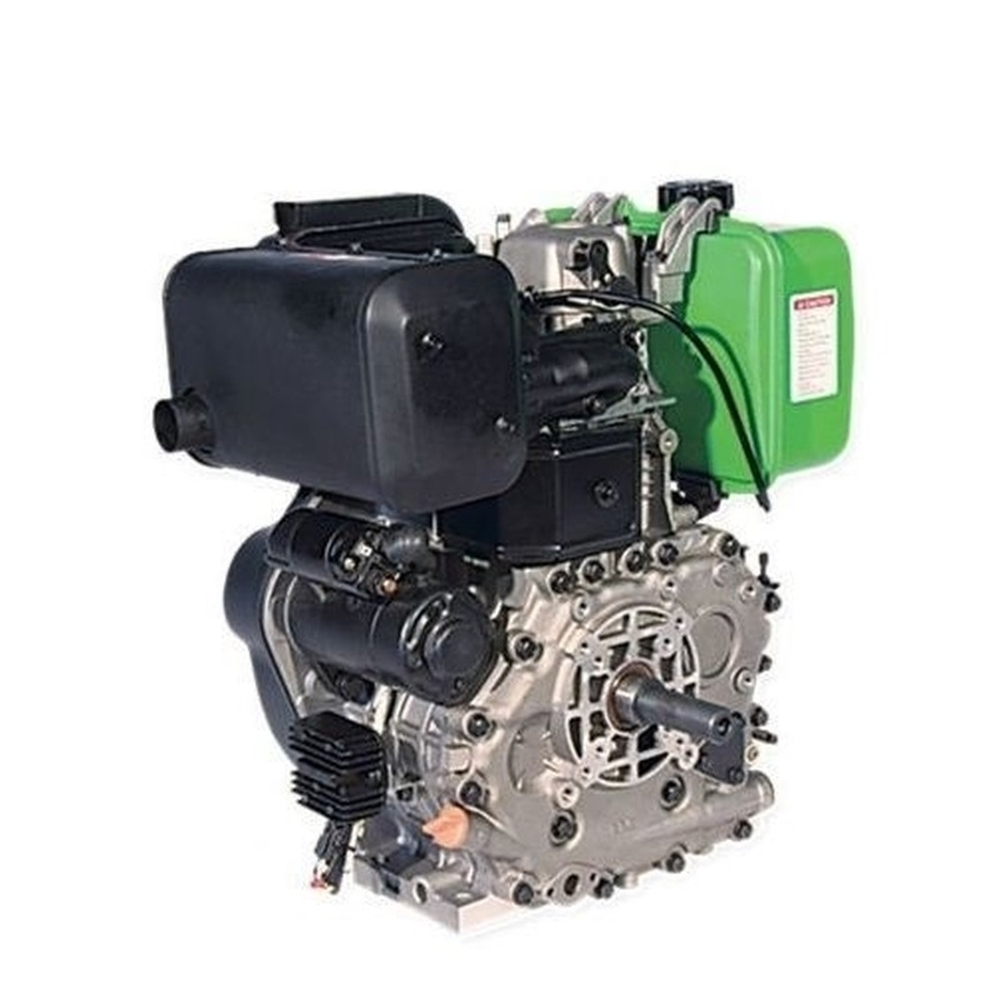

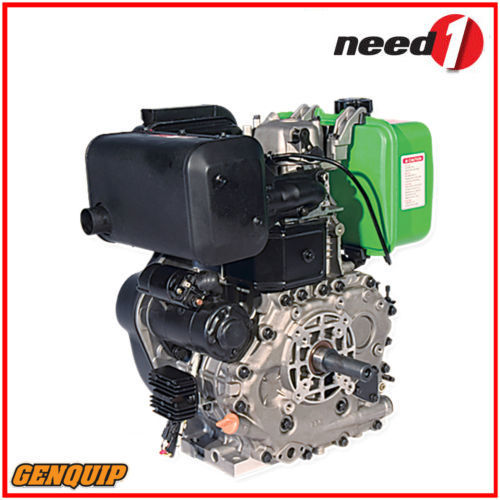

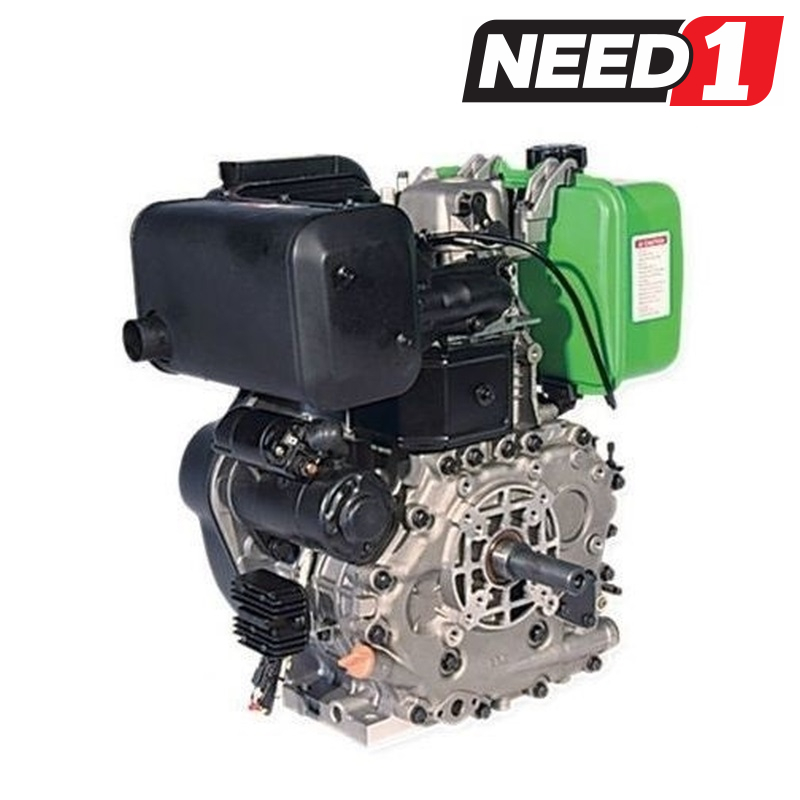

GENQUIP Diesel Stationary Motor 6.6hp Electric Start 4-Stroke 3.5L Fuel Tank

The GENQUIP Direct Injection 6.6 HP Diesel Engine features electric start as standard. There is also a pull-start as back up with a decompression lever for ease of starting. With a 25.4mm standard key way shaft and 3.5 litre tank capacity this engine is ideal where reliability is required.



Model Type 178E
Type Single-cylinder, vertical, 4-stroke, air-cooled, direct-injection
Bore x Stroke (mm) 78 x 62
Displacement (cc) 296
Speed (r/min) 3600
Continuous (HP) 5.9
Maximum (HP) 6.6
Continous (kw) 4.4
Maximum (kw) 4.9
Mean speed of piston (m/s) 7.44
Mean effective pressure (kPa) 496.6
Specific fuel consumption (g/HP.h) ?218
Specific lube-oil consumption (g/HP.h) ?3.04
Fuel tank capacity (L) 3.5
Lube Oil Capacity
Full (L) 1.1
Effective (L) 0.4
Rotary direction of crankshaft Clockwise from flywheel end
Cooling Type Forced air cooling by flywheel fan
Lubrication type Pressure,splash
Starting system Recoil manual start / electric start
Dry weight (kg) 38
Dimensions ( L x W x H ) 383 x 421 x 450 mm

Please Note : Diesel Motor prices do not include batteries. Please refer to the General Items section for battery prices and specifications.


SKU 178E
Unit Of Measure ea
